Architectural Project Deck

Provide the project brief, phase, review audience, decision goal and count. Supply rights-cleared site facts, plans, sections, program/material data and photography, with known assumptions, revision information and the exact disclaimer/professional-review wording.

Normalize units, dates and drawing revisions before composing. Distinguish verified and assumed dimensions, identify the question the review must answer and record evidence in a source ledger. Do not reuse North Quay’s sample dwelling count, area or courtyard dimension as project data.

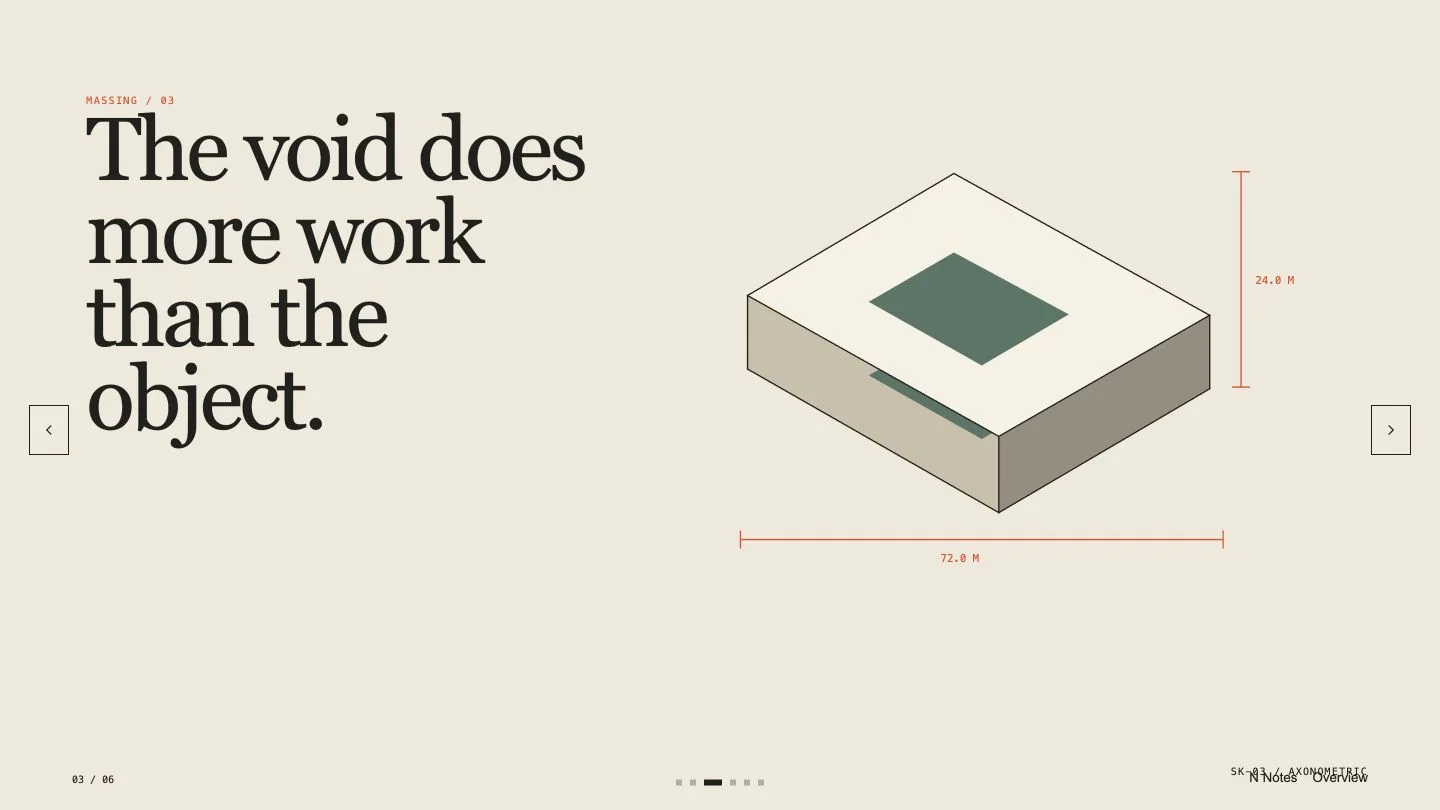

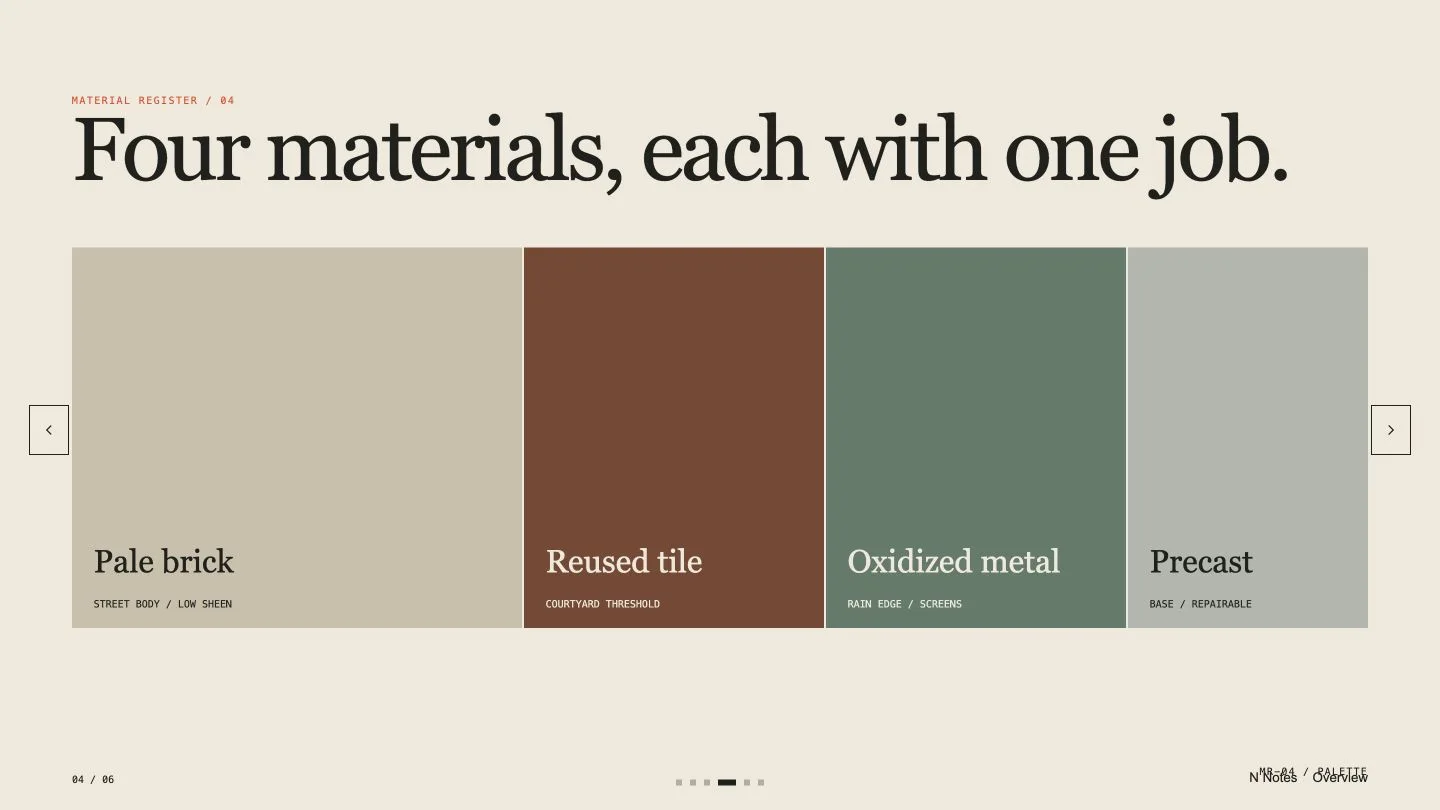

Plan one major artifact per page and select Tracing Paper, Oxide Survey or Blue Datum during generation. Use generous whitespace, readable technical annotations and concise insight-led titles. Keep no more than two dark hinge pages in a typical deck and avoid three successive pages with the same background role.

Compose using the six installed recipes, adapting nodes for a plan/section pair, proportional program stack or two-option/four-criteria decision matrix if needed. Keep drawings as editable SVG/CSS where appropriate and use approved locally embedded rasters otherwise. Image generation is optional; essential geometry and evidence must come from the brief rather than an invented rendering.

Preserve visible units, source, revision, preliminary status and review note. Sheet codes are editable content, not a documented dedicated show/hide switch in the shared editor. If a code is omitted for a presentation version, keep essential provenance elsewhere and record the change. Labeled inline SVG cues support the drawings without decorative brands or glyph arrows.

Compose/build/check with Python 3 and the agreed count/style kit, resolving sample leftovers and unfilled slots. Keep the shared editor unchanged and final fonts/media embedded; the core build does not need Node packages. Interface language can differ from slide language, with English copy the default unless requested otherwise.

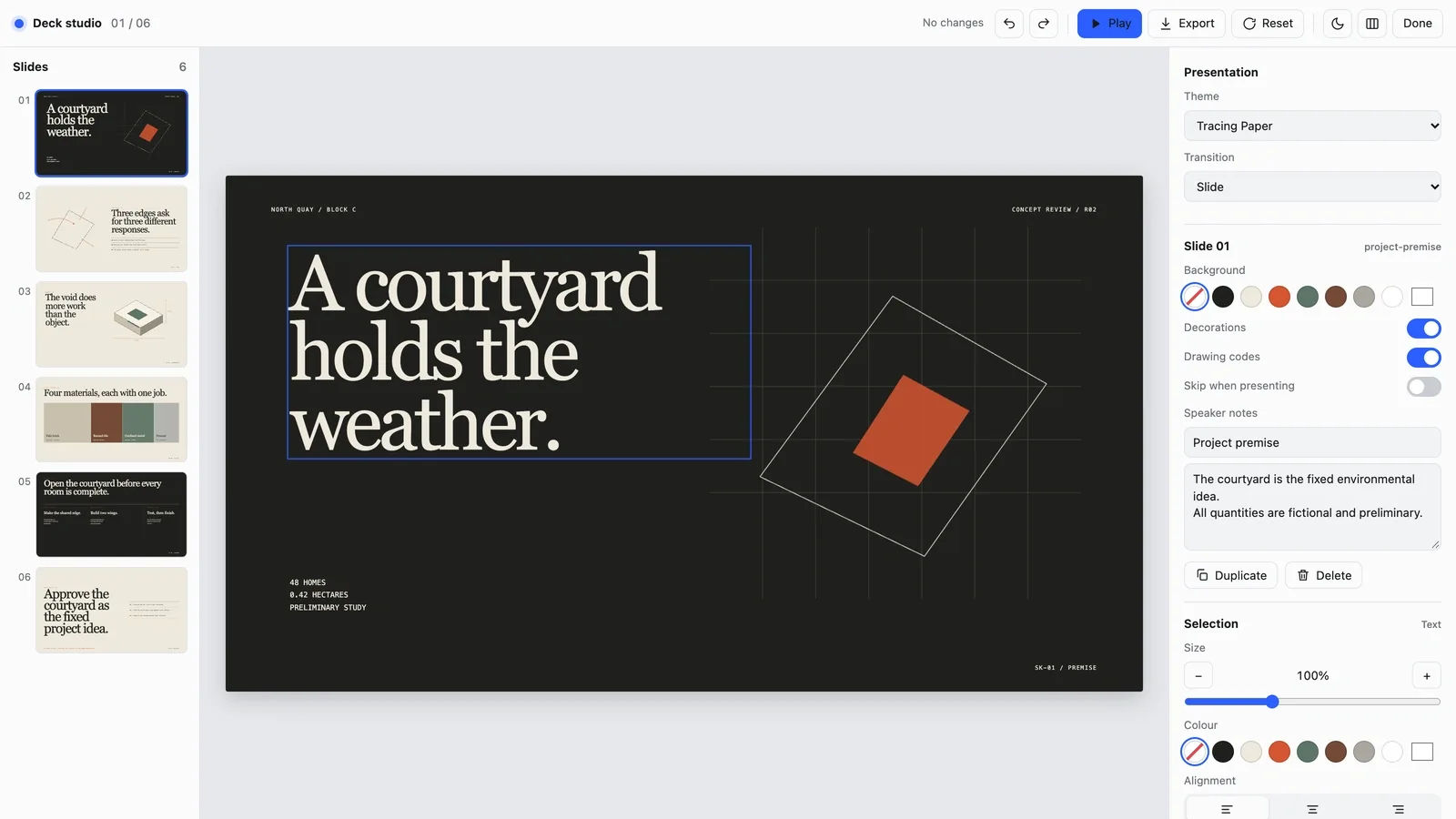

Open over local HTTP and inspect dimensions, labels, datums, crops, source notes, contrast and bounds on every page. Test Edit/E, picture replacement, drawing/text changes, notes, slide order, undo/redo, Save and reopening. The three palettes are generation choices; individual colors are editable but no preset picker is supplied.

Export requested PPTX/PDF, run the PPTX check and inspect text/notes, drawing layers and font substitutions in PowerPoint, Keynote or WPS. Deliver the source ledger, assumptions, unresolved questions and exact QA findings with the HTML. A successful export does not establish design or professional approval.
