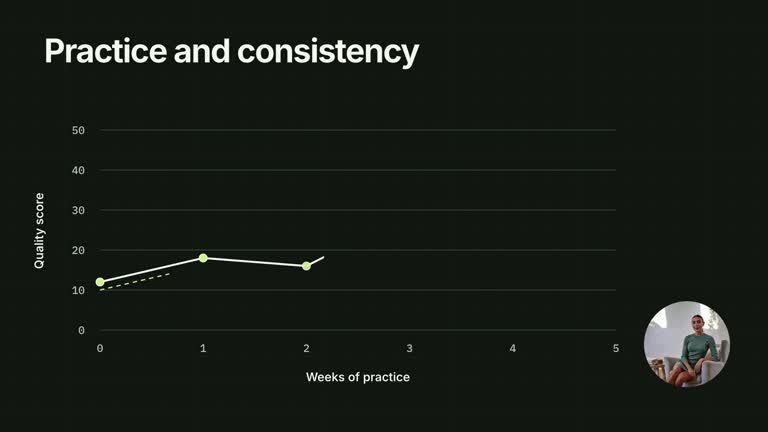

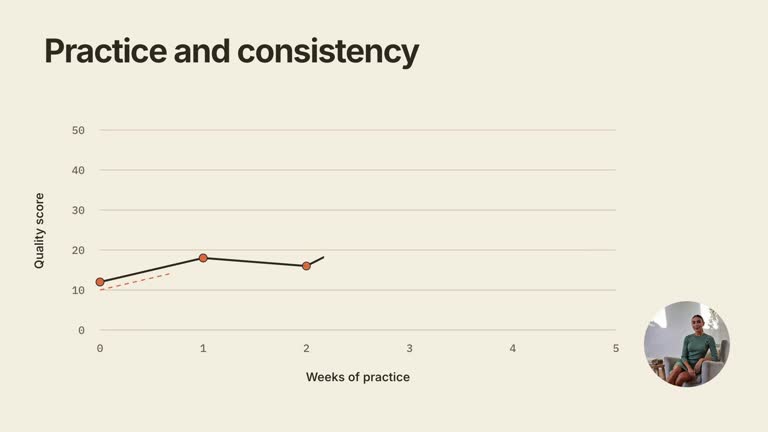

Draw observed data before presenting a separate trend. A plot grows into view, the measured path reveals across the x range, and a dashed supplied trend follows before a concluding strip appears. This ten-second effect animates coordinates you provide; it does not fit a regression, forecast future values or verify a causal relationship.
Keep observation, reference line and conclusion distinct. A dashed path can look like a model forecast even when it is merely illustrative; state what it represents and make the concluding words no stronger than the data supports.
/creatormotion-comparison-line-trend Turn my supplied explanation into a white-yellow B-roll scene using the Line and Trend Draw effect. Use the text, data and media I provide, and ask for any required input that is missing.Prepare at least two observed points ordered by x and a separate trend array on the same numeric scale. Name axes x then y and write a concise conclusion. The default practice/quality example is illustrative, not verified experimental evidence.
Check the zero-based geometry and supplied maximum extents. The y maximum rounds upward to a multiple of ten; the dashed line is drawn from your trend coordinates, not derived from observations. Label the trend’s meaning and avoid presenting it as an automatically validated prediction.
Inspect nonuniform x spacing carefully. The path mask reveals linearly across plot width, but point-marker entrances are evenly spaced by array index, so irregular intervals can produce marks appearing before or after the line reaches them. Adapt the marker timing if necessary. Add optional --media only with a continuous take covering its visible interval; no alpha matte is used.
Prepare Node.js 22+, FFmpeg and the documented HyperFrames CLI 0.8.30. Run node scripts/create.mjs --out PROJECT --data CONTENT.json with your chosen --style from the extracted package, adding semantic --overrides if needed. Read the motion specification and image policy before adapting material. No raster-image replacement is required by this composition. Include --media if using the presenter inset; the video starts at zero with a 6.8-second window and fades from 6.4 seconds.
Lint, validate and inspect the generated HyperFrames project, then render at 1920×1080 and 30 fps with the pinned CLI. Check actual MP4 frames at the opening, each handoff and final comparison for labels, geometry, contrast and bounds. Preserve at least 1.2 seconds of final reading time when editing and inspect all palettes with identical content after module changes. Narration, music and film assembly remain separate work. Check beginning/middle/end of the observed path, every marker, the separate trend mask, axis labels, conclusion and optional presenter clearance.
Yes. Supply title, coordinate arrays, axisLabels and conclusion through JSON, then use a palette or semantic overrides. Keep the observed solid line distinct from the supplied dashed trend.
No for a chart-only segment. Add --media if you want the optional presenter inset and inspect timing/crop. There is no raster-image or aligned matte requirement.
Yes. Preserve the plot entrance, observed-data drawing, separate trend and later conclusion. Review actual intermediate frames rather than treating a finished chart still as proof of correct animation.
No. trend is a separate supplied coordinate array. Fit or establish that line outside the effect and explain its basis if you use it in a factual analysis.
Positions use actual x coordinates, but marker reveal times follow array indexes. Inspect and adapt the timeline for irregular spacing so point appearances agree with the linear path reveal.
