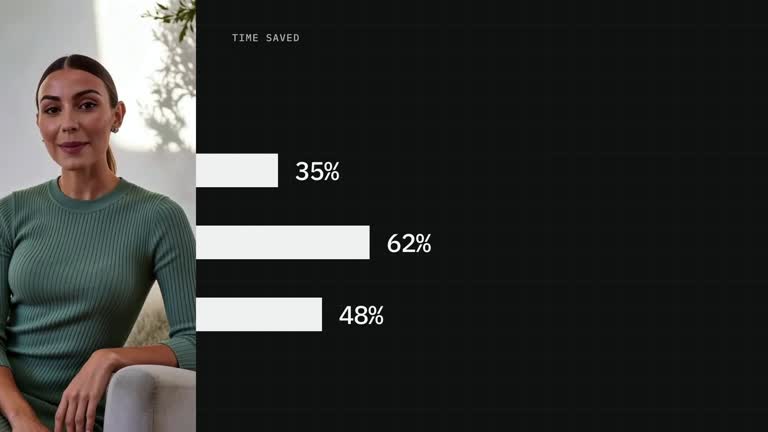

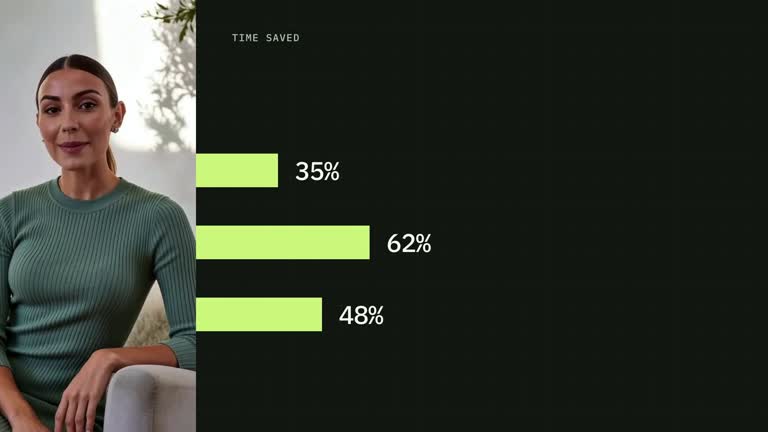

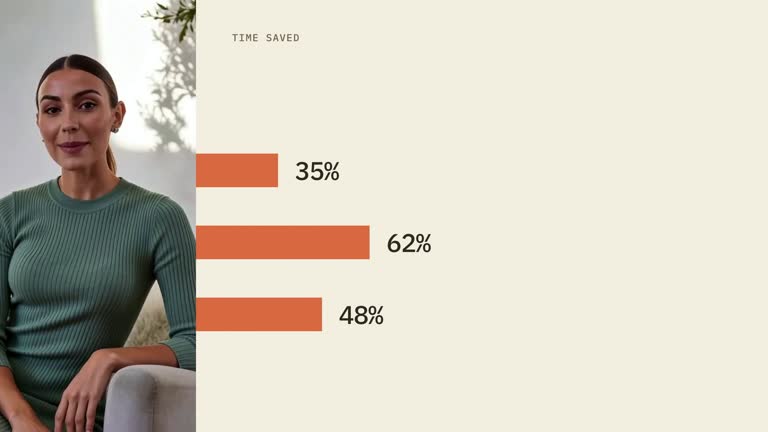

Guide viewers across a chart larger than its visible viewport while a supplied speaker remains fixed in a narrow column. The camera travels from labels toward bar endpoints, pauses on the figures, then moves down to the second group. This 6.8-second sequence presents prepared percentage rows without collecting data or making the speaker change sides.
Check what the bars claim before planning the camera scan. Make the percentage definition explicit, and use a different or adapted chart when small values must be compared precisely rather than shown with a minimum visible length.
/creatormotion-split-chart-pan Turn my supplied explanation into a white-yellow B-roll scene using the Chart Viewport Scan effect. Use the text, data and media I provide, and ask for any required input that is missing.Prepare two groups, each with name and up to three rows containing label and value. Enter percentages as whole-scale numbers, such as 35 for 35%, not 0.35. Keep the fixed TIME SAVED heading meaningful for your data, or deliberately revise the scene wording.
Use values within zero to 100 and inspect low values carefully. The bar-width calculation clamps to a minimum of five and a maximum of 100 while numeric labels show the original value. A zero label therefore still has a nonzero bar; adapt that treatment if your explanation needs precise near-zero lengths.
Supply a continuous local speaker take at least 6.8 seconds long through --media. The video is muted and cropped into a fixed narrow column with a further zoom; check face framing. No raster chart image or alpha matte is used. Do not loop a shorter take.
Prepare Node.js 22+, FFmpeg and HyperFrames CLI 0.8.30. From the extracted package run node scripts/create.mjs --out /absolute/PROJECT --data /absolute/CONTENT.json --style white-yellow --media /absolute/PRESENTER.mp4. Use another documented palette or semantic --overrides as needed. Read the motion specification, DESIGN.md and image policy before adapting materials.
Run the generated project’s lint, validate and inspect checks, then render with the printed command. Inspect actual MP4 frames at entry, every focus change and the final reading hold for seams, clipping, contrast and media overlap. Keep essential text and interface targets readable; compare all four palettes with identical content after module changes. Narration is separate, and a silent preview does not establish audio synchronization. Inspect label-to-endpoint travel, the endpoint pause and the vertical group change in actual MP4 frames. Cropping the oversized chart is intentional, but the current reading subject must stay clear. Verify that values and labels remain understandable despite the first labels fading during travel.
Yes. groups supplies names and label/value rows, with four palettes and semantic overrides. TIME SAVED is fixed in the effect code rather than exposed as a title input.
Yes. Bring a continuous local speaker take covering the 6.8-second shot. The chart is editable geometry/text, so no raster chart image or alpha matte is required.
Yes. Preserve the speaker’s fixed column and distinct horizontal/vertical camera moves. Re-render after content changes and review the intended reading subjects through the clipped viewport.
The width calculation uses a minimum value of five for visibility, while the printed number is unchanged. This is a design rule, not a true zero-length representation.
No. It displays your supplied values with a % suffix. Calculate and validate the measure yourself before generation.
